66 Conveyor Low Temperature Dishwasher - Left to Right, 230V, 3 Phase
Available Styles
Features
- Proudly made in America for quality and durability
- Low temperature sanitizing; exclusive EnergyGuard electromechanical controls
- Can clean up to 209 racks per hour; 25'' standard clearance
- Adjust-A-Peak adjustable conveyor can be used to extend wash time
- Built-in splash shields and front dress panel; stainless steel exterior with legs
- 230V, 3 Phase
Certifications
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Made in America
This item was made in the United States of America.
NSF Certified
This item is certified by NSF to applicable standards.
Product Features

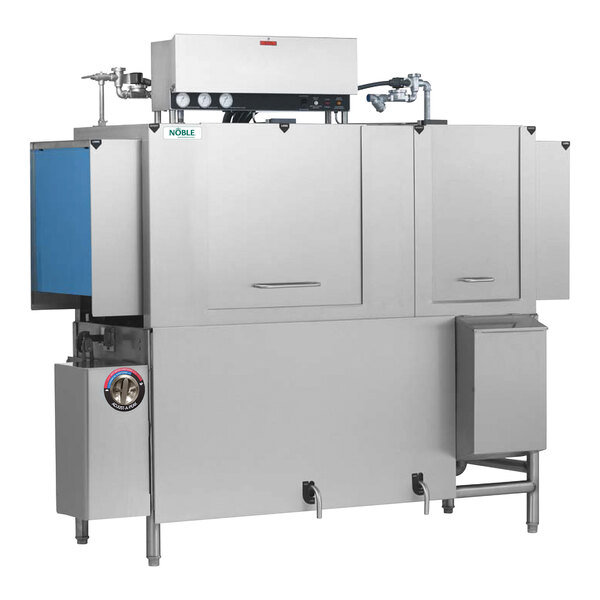

Perfect for any high volume commercial operation, this Noble Warewashing 66 low temperature conveyor dish machine works to clean hundreds of dishes more efficiently than ever. Using just 0.78 gallons of water per rack, the unit can clean up to 209 racks per hour. A 25'' standard clearance is designed to accommodate larger wares, such as sheet pans, mixing bowls, and more.
Integrated EnergyGuard electromechanical controls make for a user-friendly experience, while the Adjust-A-Peak adjustable conveyor speeds allows the machine to extend wash time and rinse contact for heavy soil conditions. The machine is fully automatic, and includes auto-fill. A self-draining wash pump allows for worry-free operation, in addition to a front dress panel and built-in splash shields which serve to protect from potential hot water burns.
The entire unit boasts stainless steel construction for extended durability. Adjustable bullet feet and legs keep the unit directly off the ground, and an exhaust vent fan control keeps external temperatures at an appropriate level. Inside, a 18kW wash tank heater will maintain proper water temperature. It requires a 230V, 3 phase electrical connection.
Overall Dimensions:
Left to Right: 82''
Front to Back: 31''
Height (door closed): 75 1/2''
Height (door open): 84''
Specifications
- Width 82 Inches
- Depth 31 Inches
- Conveyor Length 66 Inches
- Drain Height 7 1/2 Inches
- Height (Closed) 75 1/2 Inches
- Height (Open) 84 Inches
- Amps 55.3 Amps
- Hertz 60 Hz
- Phase 3 Phase
- Voltage 230 Volts
- Wattage 18 Kilowatts
- Conveyor Horsepower 1/4 hp
- Conveyor Speed 5.75 Feet Per Minute
- Direction Left to Right
- Features Made in America
- Features NSF Certified
- High or Low Temp Low Temp
- Interior Clearance 25 Inches
- Minimum Water Inlet Temperature 110-140 Degrees F
- Plug Type Hardwire
- Product Type Dishwashers
- Product Type Warewashing Chemicals
- Racks (per Hour) 209
- Type Conveyor Dishwashers
- Wash Horsepower 2 hp
- Wash Tank Capacity 21 gal.
- Water Inlet Size 1/2 Inches
- Water Inlet Size 3/4 Inches
- Water Temperature 140 Degrees F
- Water Usage 0.78 Gallons Per Rack
